3s N6078 Cámara Ip Mini Bullet Ir

Descripción

- 2 Megapixel 1/3” CMOS Sensor in High Resolution
- H.264/MJPEG Dual Codec & Streaming simultaneously
- Vari-Focal Lens 3-10mm F1.6
- UXGA (1600x1200@15fps) / WXGA (1280x720@30fps)
- Digital I/O for External Sensor and Alarm
- Mechanical ICR, Built-in IR Illuminator
- 50ft / 15m IR
- 3D Noise Reduction
- 2 Way Audio Supported
- Intelligent Video Analytics
- PoE Power Over Ethernet IEEE802.3af (Option)

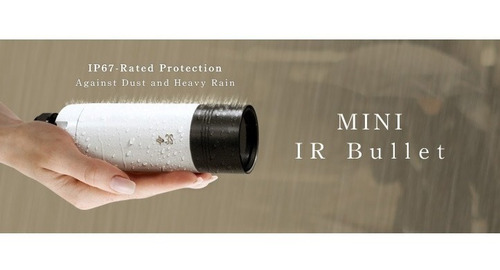

- IP67 Weather Proof + IK07 Vandal Proof
- Heater (Optional)
- Micro SD Card Supported (SDHC up to 32GB)



Camera
Sensor 2 Mega Pixel 1/3” CMOS sensor
Scan Method Progressive
Lens Vari-Focal Lens 3-10mm F1.6
Number of Effective Pixel (H*V) 1600x1200
Minimum Illumination 0.1Lux (F1.6, AGC max.)0Lux (IR On)
Horizontal Resolution 950TVL
Dynamic Range 71db
SNR(max) 42.3db
DNR Auto
White Balance Auto
Gain Control High/Middle/Low, 3 step selection
Flicker Control Off/50Hz/60Hz, 3 steps selection
Backlight Compensation On/Off
Electronic Shutter Auto/Slow Shutter (2X~16x / 5 steps selection)
Number of the Preset Positions 16


IR Illuminators
Wavelength Range 850nm
Distance 15M
Day and Night IR-Cut Filter Removable (ICR)
Beam Angle 30°


Video
Video Compression H.264 (MPEG-4 Part 10/AVC)/MJPEG, Dual codec
Video Framerate 1600x1200@15fps/1280x720@30fps
Resolution H.264 :
2M(1600x1200@15fps)
720P(1280x720@30fps)MJPEG :
2M(1600x1200@15fps)
720P(1280x720@30fps)
Bitrate Control CBR and VBR, 128kbps ~ 4Mbps
Multi-streams Dual streaming,Multiple profiles
1280x720 H.264@30fps
640x352 H.264(Sub)@30fps
1280x720 MJPEG@15fps
1600x1200 H.264@15fps
640x480 H.264(Sub)@15fps
1600x1200 MJPEG@15fps
Digital Zoom 1/4X, 1/3X, 1/2X, 1X, 2X, 4X
Image Rotation Mirror, Flip, Rotate 180°


Intelligent Video
De-Noise Yes
Motion Detection Yes
Blind Detection Yes
Privacy Mask Yes


Audio
2 Way Audio Audio microphone in, Audio Line-out
Compression AMR, G.711 @ 64kbps, G.726 @ 32kbps / Configure bit rate


Network
Streaming Protocols RTSP / RTP / UDP, RTSP / RTP / TCP, RTSP / RTP / shttp tunneling, LAN Multicast, Multipart-JPEG
Supported Protocols IPv4, http, UDP, TCP, ICMP, IGMP, ARP, DHCP, NTP, SMTP, FTP, SAMBA, UPnP, PPPoE, DNS, DDNS, RTSP, RTP, RTCP,ONVIF
Mobile Surveillance iPhone, iPad, Android, BlackBerry


Storage
External 1 x Micro SD Card ( SDHC up to 32GB )


Processors and Memory
CPU ARM9 SoC
Flash and Memory 16MB NOR flash, 256MB DDRII


I/O and Connectors
LAN 1 x RJ45 Ethernet connector
Audio 1xAudio Line-in, 1xAudio Line-out
Alarm I/O 1xAlarm-in, 1xAlarm-out


Software Compatibility
Browser Internet Explorer 6.0 or above
Application Software VMS Application Software
OS supported Microsoft Windows 2000, XP , Vista, Windows 7


Open API
CGI commands to control camera
Media SDK to handle streaming


Power
Power Input DC12V / DC12V+PoE(Option)
Power Consumption 6W(IR On) / 4W (IR Off)


Operating Environment
Operating temperature -20°C~ 50°C
Storage temperature -30°C~ 60°C
Storage Humidity 0% ~ 95% non-condensing


Factory Default Button


Demension 180mm(L) x 65mm(Ø)


Weight DC12V : 607g / PoE : 627g


Certification CE, FCC Class A, RoHS, IP67
