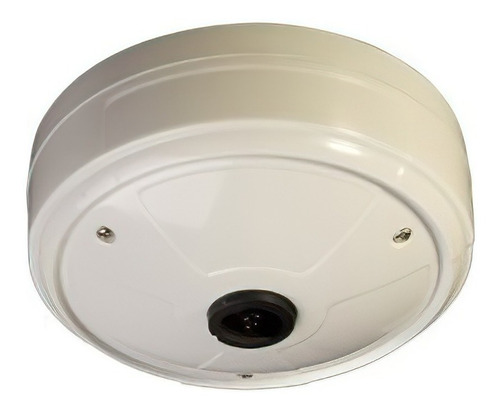

Cámara De Interior Ip Fisheye 360° 2mp H264, Ike2102m-5511

Descripción

Cámara de interior IP tipo Fisheye 360° 2 Megapixel H.264

Visión amplia (180 °)
H.264, hasta 1600 x 1200
Compresión de vídeo: H.264, MPEG-4, MJPEG
doble secuencia
Embebidos Análisis de vídeo inteligente
Texto Burnt-in, soporte de vídeo de detección de movimiento
Audio de dos vías
Actualización de firmware remota a través de la red
SDK Apoyo Integral


Specifications

Camera Module

Image Sensor Aptina (Micron) 1/3.2" (4:3) CMOS 2M
Effective Pixels 1600 x 1200 (UXGA, 2M)
Scanning System Progressive Scan
Dynamic Range 71dB
SNR Max 42.3dB
Minimum Illumination 0.5 Lux(50IRE), 0.1 Lux(DSS x5 ON)
Lens 1.2 mm F2.0 (Fisheye Lens)
Field of View Horizontal 180°
Vertical 160°
Day & Night S/W

Video

Megapixel Compression H.264, MJPEG
Number of Streams Dual Stream, Configurable
Resolution UXGA, SXGA, HD720, XGA, D1, 4CIF, 2CIF, VGA, CIF,
QVGA, QCIF (See Manuals for Detail Information)
Compression FPS
(In case of VCA or Burnt In
Annotation on, fps could be
decreased) H.264
5 fps@UXGA (1600 x 1200)
8 fps@SXGA (1280 x 1024)
12 fps@HD720 (1280 x 720)
15 fps@XGA (1024 x 768), D1 (720 x 480)
MPEG-4
15 fps@D1 (720 x 480)
MJPEG
15 fps@UXGA (1600 x 1200)
Motion Detection Built-in (DSP)
Burnt-in Text Video stream overlay text (DSP)

Audio

Input 1 channel
Output 1 channel
Compression Format G.711

Function

Digital Input 1
Digital Output 1
Network 10 / 100 Base-T
Protocol TCP/IP, UDP/IP, http, RTSP, RTCP, RTP/UDP, RTP/TCP,
SNTP, mDNS, UPnP, SMTP, SOCK, IGMP, DHCP,
DDNS, SSL v2/v3, IEEE 802.1X, SSH, SNMP v2/v3

Electrical

Power Source 12V DC
Power over Ethernet Support, IEEE 802.3af
Power Consumption (Approx) 320 mA @ 12V DC

Environmental

Operating Temperature
DC12V: 0°C ~ 40°C (32°F ~ 104°F)
PoE: 0°C ~ 50°C (32°F ~ 122°F)

Operating Humidity Up to 85% RH, Non-condensing

Mechanical

Material Aluminum Die Casting / Polycarbonate
Color Ivory
Dimension 144(ø) x 62.9(H)mm
Weight (Approx) 360g

Primary Intelligent Video Analytics (Included as Standard)

High Performance Advanced Tracking Algorithm, Low False Alarm Rate
Easy to Use Intuitive Web Browser Interface
Detection Zones Multi-segment Polygons and Lines
On-screen Display Real-time Display of Tracking Data and Events
Camera Shake Cancellation Improve the VCA performance with cameras that are prone to shake
Tamper Detection Detect camera tampering

Advanced Intelligent Video Analytics (Option)

Detection Behavior Direction, Stopping, Loitering, Entering,
Exiting, Appear, and Disappear Filters,
Abandoned/Removed Object Detection,
Tailgating Detection
3D Behavior Perspective Corrected Size and Speed Filters
Statistics Counting Functions and Other Statistics
Meta Data Plain XML Format
